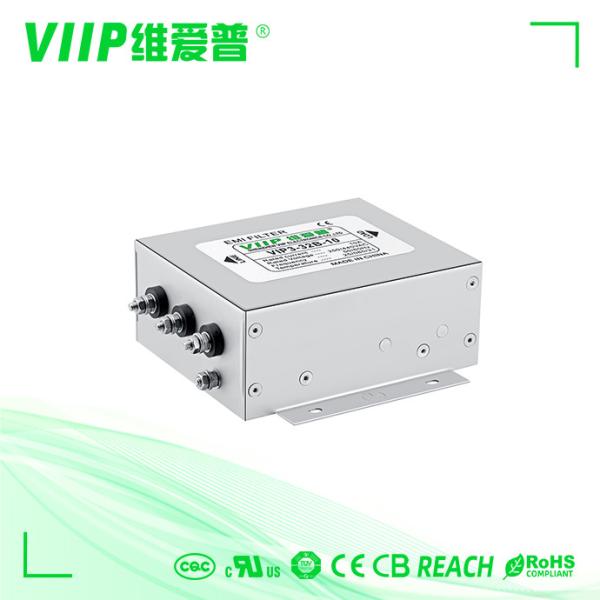

AC Input Low Pass Noise Filter , 3 Phase EMI Filter For Inverter

Name: AC Input Low Pass Noise Filter 3 Phase EMI Filter For Inverter
Brand: VIIP
Price: 1 USD

Brand Name : VIIP

Model Number : VIP3-31A-40

Certification : CE TUV UL ROHS REACH

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 2000 pcs within 10-15 days

Packaging Details : 33*33*18

Product name : AC 3 PHASE EMI FILTERS

Rated voltage : 110/250VAC

Rated current : 40A

MOQ : 5 PCS

Type : EMC Filter

Application : Electronic Equipments

Contact Now

Low Pass Filter Noise Filters AC 3 Phase Input EMI Filter For Inverter

Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

Specification:

Item	VIIP 3-phase 3-line EMI filter
Part Number	VIP3-31A-40
Rated voltage	250/440VAC,50/60Hz
Operating frequency	DC to 60Hz
Rated currents	3~200A@40°C
Hipot Rating	L-L 2250VDC
	L-G 2700VDC
Climatic category	-25°C~+85°C(25/85/21)
Design corresponding to	UL1283, CSA C22.2 No.8,
	IEC/EN 60939,
	CQC GB 15288/GB 15287-2008
Flammability	UL 94V-0

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals	Weight [g]
VIP3-31A-06	6A	<2.0mA	Fig 1	Fig 1	M4	380
VIP3-31A-10	10A	<2.0mA	Fig 1	Fig 1	M4	510
VIP3-31A-20	20A	<2.0mA	Fig 1	Fig 1	M4	600
VIP3-31A-30	30A	<2.0mA	Fig 1	Fig 1	M6	640
VIP3-31A-40	40A	<2.0mA	Fig 1	Fig 1	M6	640
VIP3-31A-50	50A	<3.0mA	Fig 2	Fig 1	M6	1000
VIP3-31A-80	80A	<7.0mA	Fig 2	Fig 1	M8	3000
VIP3-31A-100	100A	<7.0mA	Fig 2	Fig 1	M8	3000
VIP3-31A-150	150A	<7.0mA	Fig 2	Fig 1	M10	3200
VIP3-31A-200	200A	<7.0mA	Fig 2	Fig 1	M10	3200

Electrical schematic:

AC Input Low Pass Noise Filter , 3 Phase EMI Filter For Inverter

Mechanical Dimension(Unit: mm)

	A	B	C	E	F	G	H	I	J	K	L	M	N	p	Q
6A	72	65	38	85	106	45	75	Φ4.0	6	40	26	12	42	22 5	M4

10A	72	65	38	85	106	45	75	Φ4.0	6	40	26	12	42	22 5	M4

20A	72	65	38	85	104	45	75	Φ4.0	6	40	26	12	3 3	22 5	M4

30A	96	80	42	105	137	50	95	Φ4.0	6	42	26	9	3 6	29 5	M6

40A	96	80	42	105	137	50	95	Φ4.0	6	42	26	9	36	29 5	M6

50A	120	100	50	130	160	60	115	Φ4.0	6	50	28	10	3 1	25	M6

80A	200	127	80	170	264	116	150	Φ6 0	9	70	50	20	9	46	M8

100A	200	127	80	170	264	116	150	Φ6 0	9	70	50	20	9	46	M8

150A	200	127	80	170	264	116	150	Φ6 0	9	70	50	20	48	46	M10

200A	200	127	80	170	263	116	150	Φ6 0	9	70	50	20	44	46	M10

tolerance	士1	±1	±1	土1	士1	士0 5	士0 5	士0 5	土0 5	士0 5	土0 5	士0 5	士0 5	±0 5

Applications:

such as print machine

packing machine

textile equipment

industry air conditioner

UPS

medical equipment
